Technical Specifications:

• Dell Precision 5470
• Product type: Mobile workstation
• Form factor: Clamshell
• Chassis Options: Intel Core I7-12800H vPro with NVIDIA RTX A1000 4GB Graphics and 32G memory
• Processor family: Intel® Core™ i7
• Processor model: i7-12800H
• Display: 14" FHD+ Non-touch, 1920 x 1200, 60Hz, 500 nits WLED, 100% sRGB, Low Blue Light, IR Camera and Mic
• Display diagonal: 35.6 cm (14")
• HD type: Full HD+
• Display resolution: 1920 x 1200 pixels
• Memory: 32 GB, DDR5, 5200 MHz, integrated
• Internal memory: 32 GB
• Internal memory type: LPDDR5-SDRAM
• Total storage capacity: 1000 GB
• Storage media: SSD
• Graphics Card: NVIDIA® RTX™ A1000, 4 GB GDDR6
• On-board graphics card model: Intel Iris Xe Graphics
• Discrete graphics card model: NVIDIA RTX A1000
• Operating system installed: Windows 11 Pro
• Product colour: Grey

Features and Design

Operating System

Available with Windows 11, Windows 10 or Ubuntu.

A small device made for big ideas

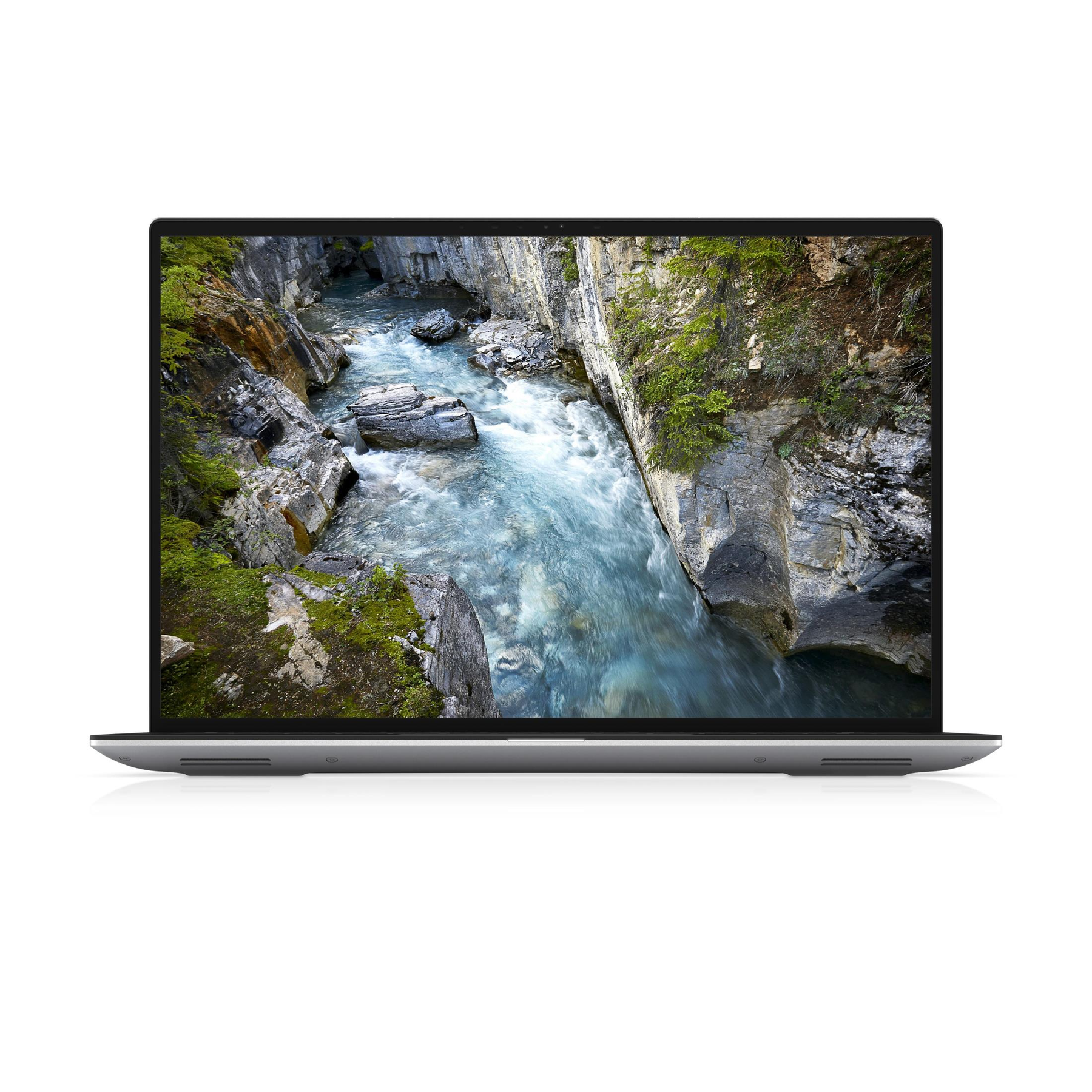

Displays optimal screen design

With PremierColor and ComfortView Plus capability on the 14", 16:10 QHD+ 4-sided InfinityEdge display (approximately 91% screen to body ratio).

Promotes productivity

Using Optional NVIDIA RTX graphics.

Provides hands-on production

With the optional Touch and Active Pen, large clickpad and backlit keyboard.

Powers through the project

Thanks to a 72Whr battery with ExpressCharge capabilities. Long life cycle battery available.

Spotlights your genius

With the Windows Hello-compatible IR camera that has proximity and ambient light sensors.

Puts the awe in audio

With dual mics and four speakers with Intelligent Audio.

Impressive performance for constant creativity

Spur your creativity with features that allow you to create without interruption.

Up to Intel Core i9 processors, 14 core (6P+8E) | Optional NVIDIA RTX graphics.

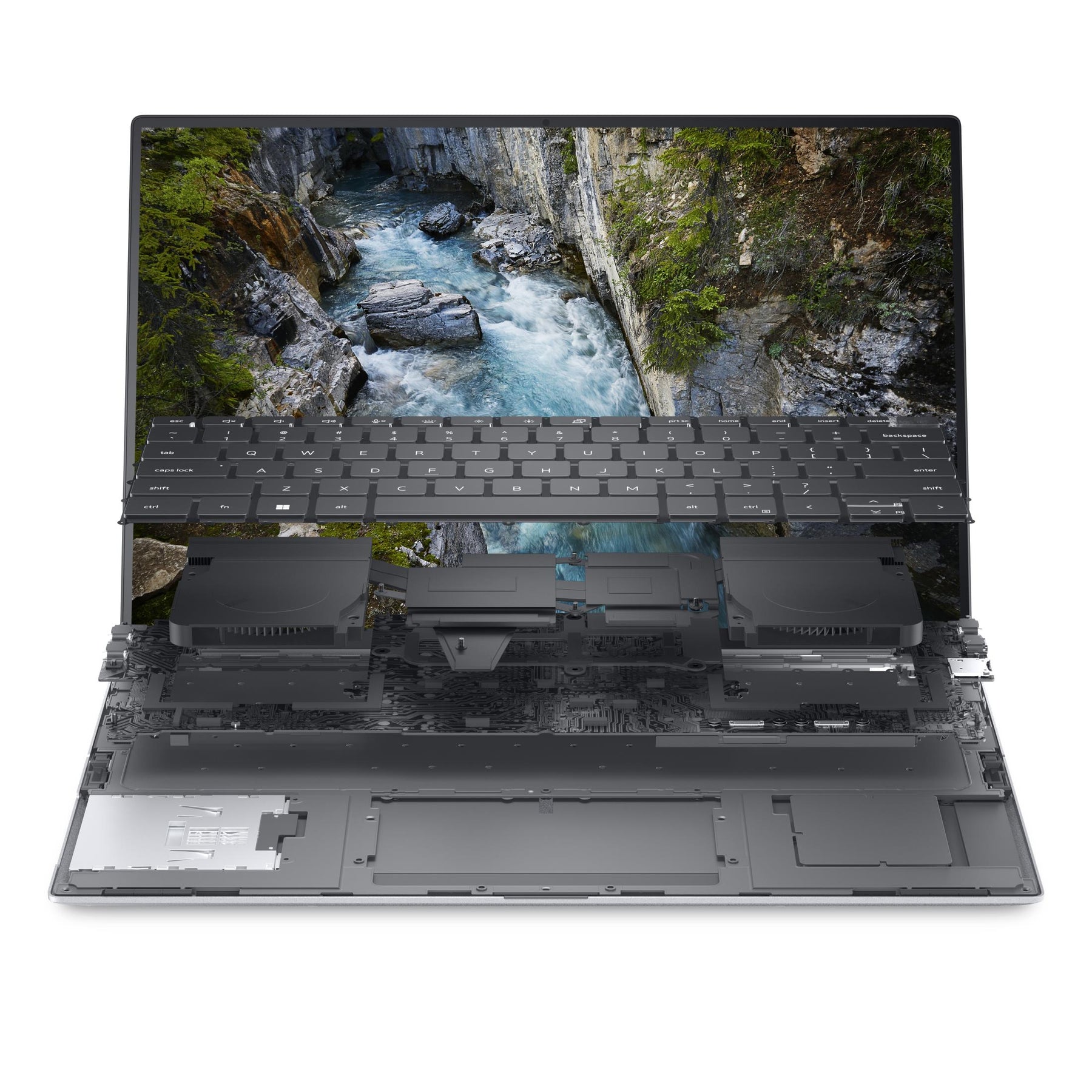

Advanced thermals feature dual opposing output fans.

Up to 4TB of storage | 64GB of 5200MHz DDR5 memory.

Commemorating 25 Years

Available in the US only, the gorgeous, blue Precision 5470 Anniversary Edition is now here; commemorating 25 years of the Dell workstation line of business.

There are only 5000 units of the 5470 Anniversary Edition mobile workstations being produced, so get them while you still can.

Dell Optimizer for Precision

Our built-in AI platform learns how you work and adapts to create a smarter, more personalized experience. We make it intelligent. You make it yours.

Intelligent Privacy:Keeps sensitive data private by texturizing and turning on SafeScreen when an onlooker is detected and dims the PC when you look away.

Express Connect:Automatically connects you to the best network and delivers unmatched connectivity with the world’s first simultaneous multi-network connection.

Analytics:Generates end-user reports and analyze your system for personalized insights.

Independent Software Vendor (ISV) certification

Precision workstations are tested to ensure the high-performance applications you rely on every day run smoothly. Dell ISV-certifications cover the most popular independent software applications.

Premium Panel Guarantee

The Dell Premium Panel Guarantee allows a free panel replacement during the Limited Hardware Warranty period even if only one bright pixel is found.

Design and create your masterpieces

Built for design and creative applications like:

• Design – 2D, 3D CAD
• Graphic design, video and photo editing, animation
• Education
• Financial analysis
• Application development
• Architecture
• Interior and exterior design

Security you can count on

The Windows Hello-compatible IR Camerawith proximity sensor recognizes you and automatically locks and unlocks to increase privacy and productivity.

The fingerprint readerbuilt into the power button uses biometrics to log you in quickly and ensures that only you have access to your sensitive data and private work.

Chassis Intrusion Sensoridentifies when the chassis or BIOS have been compromised.

Windows 11 Pro - designed for hybrid work.The most productive and secure version of Windows yet—but simple for IT.

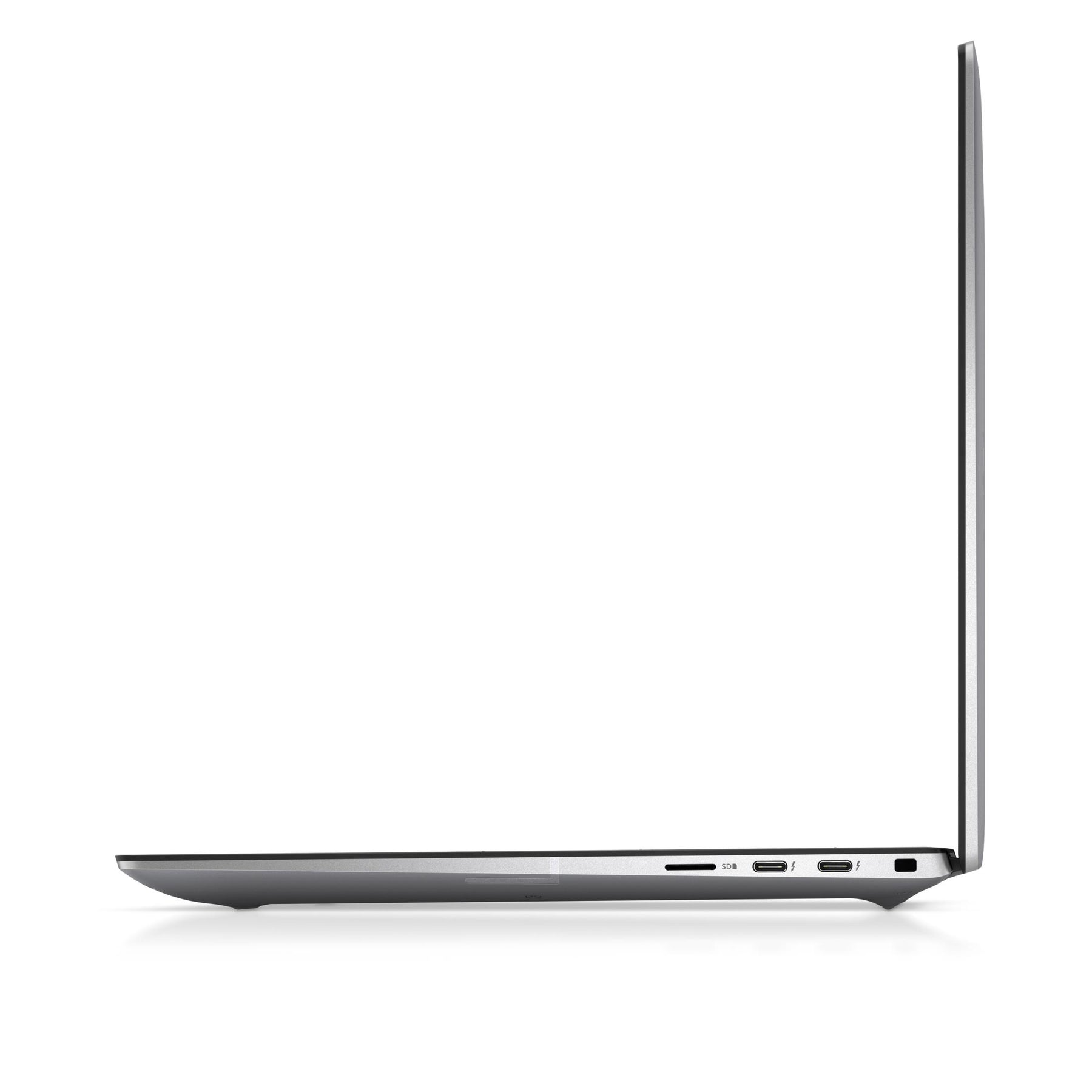

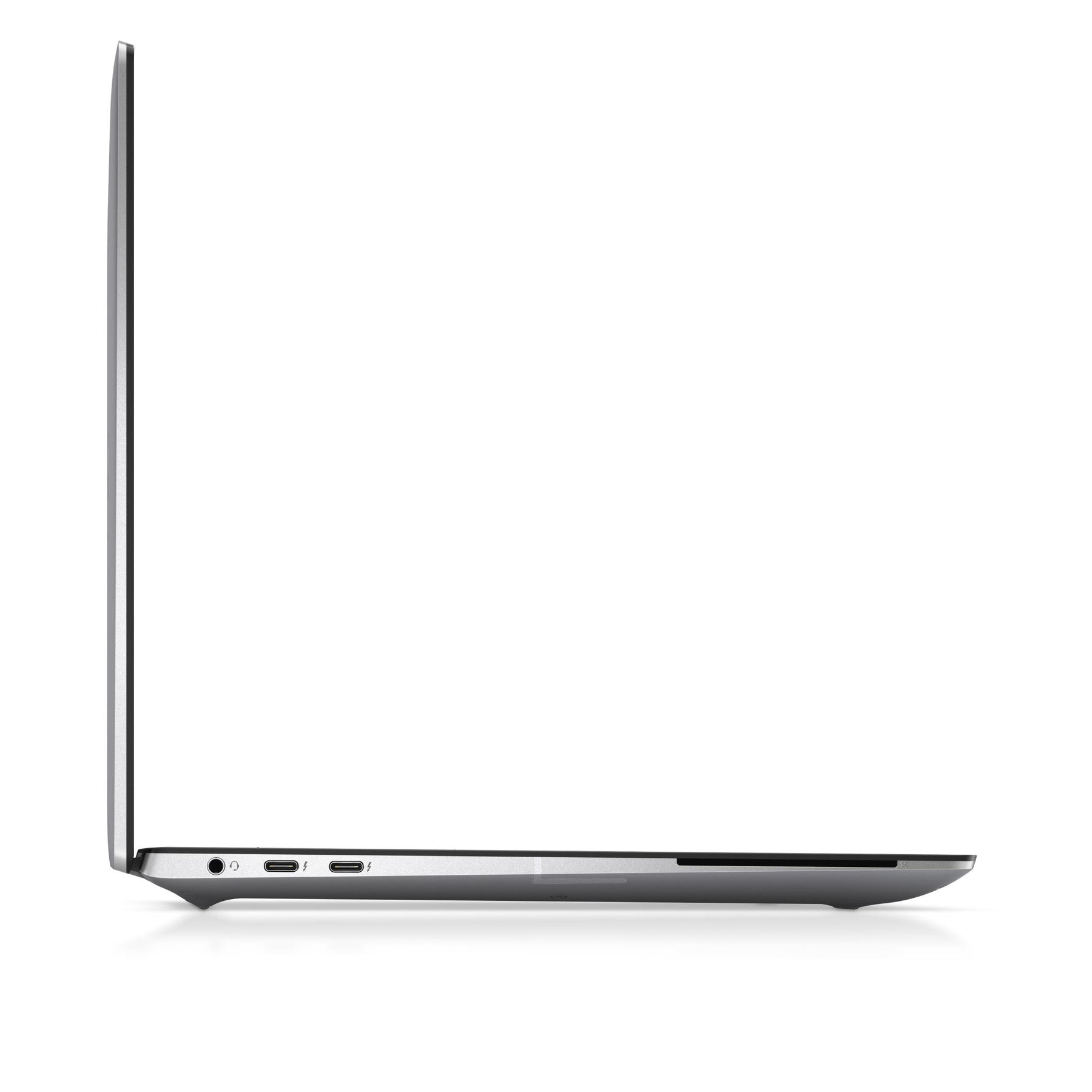

Ports & Slots

• Chassis intrusion sensor
• Antenna
• SD card reader
• 2x Thunderbolt 4.0 Type-C port (1x Power Delivery)
• Lock slot
• Headset/mic
• 2x Thunderbolt 4.0 Type-C port (1x Power Delivery)
• Optional SC reader
• *USB-A and HDMI dongle included in the box.

Dimensions & Weight

• Height: 0.74 in. (18.95 mm)
• Width: 12.22 in. (310.60 mm)
• Depth: 8.27 in. (210.30 mm)
• Starting Weight: 1.48 kg (3.26 lb)
